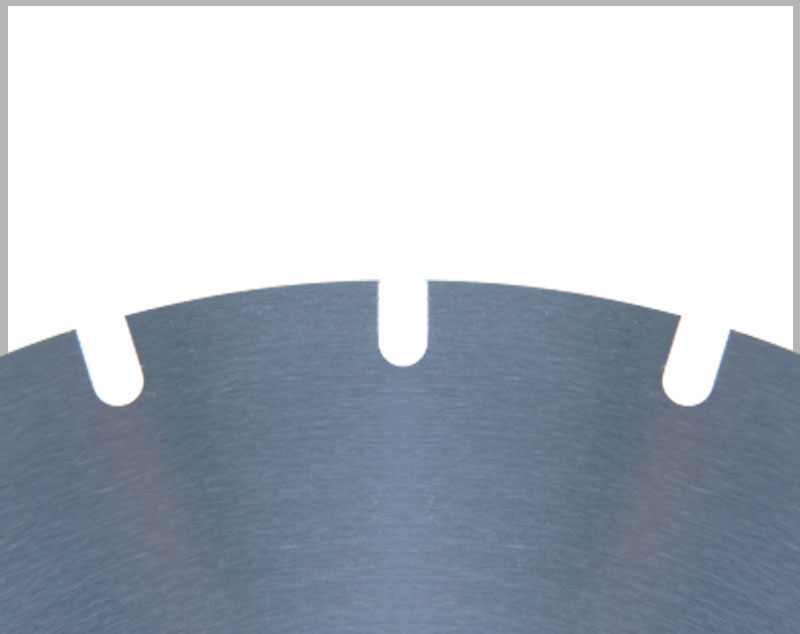

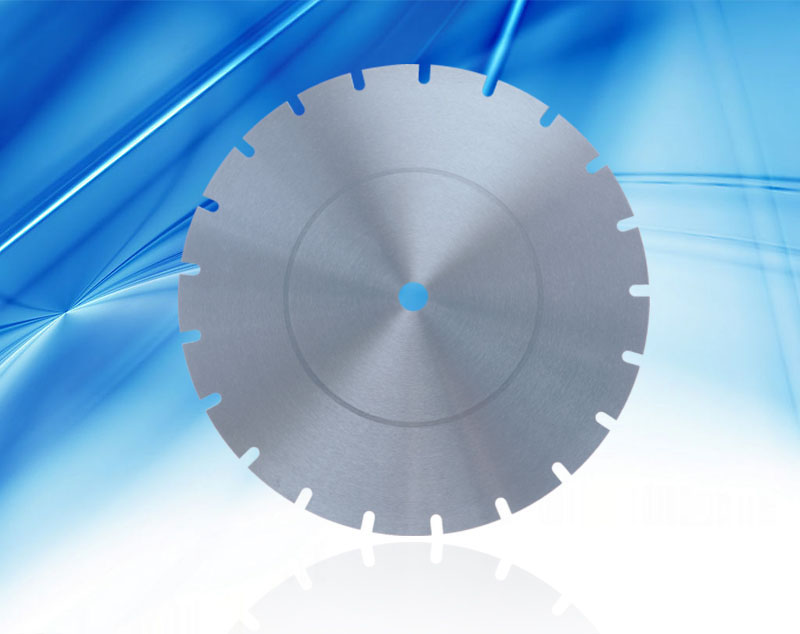

常规金刚石圆锯片基体 宽水槽
名称：常规金刚石圆锯片基体 宽水槽
用途：石材、建材切割用
关键词：金刚石圆锯片，锯片基体，石材，建材，切割
注：未注明规格亦可订做
用途：石材、建材切割用
关键词：金刚石圆锯片，锯片基体，石材，建材，切割

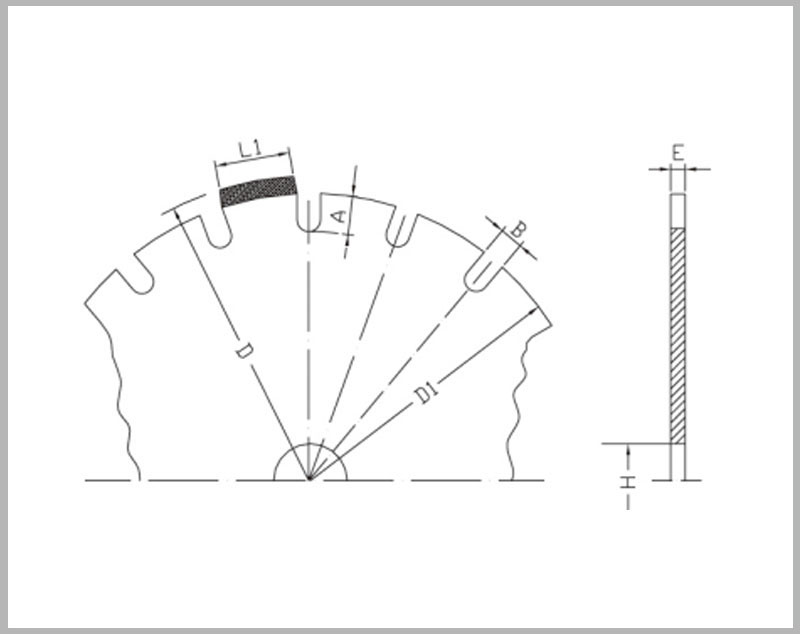

| 锯片直径D | 基体直径D1 | 中心孔H | 厚度E | 齿数Z | 槽深A | 槽宽B | 焊接方式 | |
| 高频焊接 | 激光焊接 | |||||||
| 300 | 290 |
25.4 50 60 80 100 |
1.8/2.2 | 18 | 16 | 10 | √ | √ |
| 350 | 340 | 2.2/2.4 | 21 | 16 | 10 | √ | √ | |
| 400 | 390 | 2.6/2.8 | 24 | 16 | 10 | √ | √ | |
| 450 | 440 | 2.8/3.0 | 26 | 16 | 10 | √ | √ | |
| 500 | 490 | 2.8/3.0 | 30 | 16 | 10 | √ | √ | |
| 550 | 540 | 3.0/3.2 | 32 | 16 | 10 | √ | √ | |
| 600 | 590 | 3.4/3.6 | 36 | 16 | 10 | √ | √ | |
| 700 | 690 | 4 | 42 | 16 | 10 | √ | √ | |
| 800 | 790 | 4.2/4.5 | 46 | 16 | 10 | √ | √ | |
| 900 | 890 | 5.0/5.5 | 64 | 20 | 18 | √ | √ | |
| 1000 | 990 | 5.0/5.5 | 70 | 20 | 18 | √ | √ | |
| 1100 | 1090 | 100 | 5.0/5.5 | 74 | 22 | 20 | √ | √ |
| 1200 | 1184 | 5.5/6.0 | 80 | 22 | 20 | √ | √ | |
| 1300 | 1284 | 6.0/6.5 | 88 | 22 | 20 | √ | ||
| 1400 | 1384 | 6.5 | 92 | 22 | 20 | √ | ||
| 1500 | 1484 | 7 | 100 | 22 | 20 | √ | ||
| 1600 | 1584 | 7.2 | 108 | 22 | 20 | √ | ||
| 1650 | 1650 | 7.2 | 108 | 22 | 20 | √ | ||
| 1800 | 1784 | 8 | 120 | 22 | 20 | √ | ||
| 2000 | 1984 | 9 | 126 | 24 | 22 | √ | ||
| 2200 | 2184 | 9 | 132 | 24 | 22 | √ | ||
| 2500 | 2484 | 9 | 140 | 25 | 25 | √ | ||
| 2600 | 2584 | 9 | 146 | 25 | 25 | √ | ||
| 2800 | 2784 | 9 | 156 | 30 | 25 | √ | ||
| 3000 | 2982 |
100 150 |
10 | 160 | 30 | 30 | √ | |
| 3500 | 3482 | 10.0/11.0 | 180 | 30 | 30 | √ | ||
